The short answer
For a 3,000 square-foot play area, those examples imply roughly$9,000–$15,000 for engineered wood fiber, $30,000–$54,000 for rubber tile, and $45,000–$75,000 for poured-in-place rubber, before sub-base, drainage, borders, and demolition. A federal field study recorded lower material-only costs between 2009 and 2012 (U.S. Access Board); installed costs today are higher.
We did not find a dependable published installed range for synthetic turf systems or loose-fill rubber, so the planner prices those with a wide proxy range and marks the estimate as less certain. Ask for system-specific pricing.
Surfacing comparison
| System | Initial cost | Accessibility | Maintenance and replenishment | Drainage | Customization | Heat | Common exclusions |
|---|---|---|---|---|---|---|---|
| Engineered wood fiber | Lower | Some engineered wood fiber products are tested for accessibility, but firmness depends on product, depth, compaction, and upkeep. Many projects add unitary routes or mats. | Frequent raking and periodic replenishment to maintain depth, especially under swings and slide exits. | Needs a drainage layer and geotextile; standing water degrades performance. | Minimal. | Generally stays cooler than dark unitary surfaces. | Borders, drainage layer, wear mats, and future replenishment. |

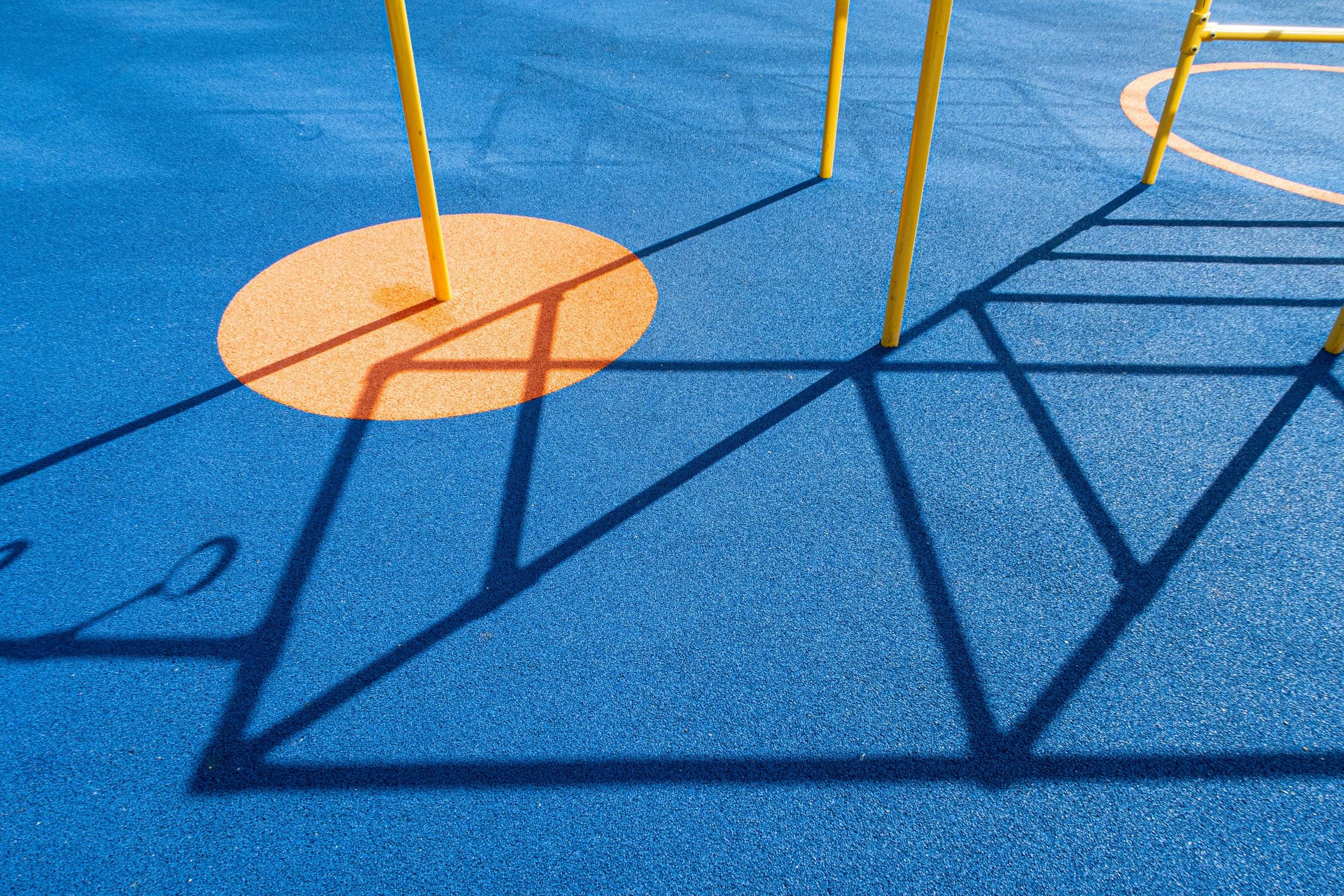

| Poured-in-place rubber | Higher | A firm, continuous surface that commonly supports accessible routes when the system is tested and properly installed. | Low day-to-day upkeep; periodic repairs and eventual top-coat or replacement. | Requires a compacted aggregate or concrete base; designed as porous or drained. | High: colors, graphics, and mounded forms. | Dark colors can become hot in direct sun; shade and lighter colors help. | Sub-base, demolition, and thickness changes for higher fall heights. |
| Rubber tile | Moderate | Firm and continuous when installed on a suitable base; seams and edges need attention. | Low; individual tiles can be replaced. | Requires a stable, well-drained base. | Moderate: colors and patterns. | Can heat up in direct sun. | Base preparation, edge transitions, and adhesive. |
| Synthetic turf system | Higher | Can provide a firm surface when the tested system is installed as specified. | Grooming, infill redistribution where used, and seam care. | Requires a free-draining base. | Moderate: colors, mounds, and inlaid graphics. | Can become very hot in direct sun. | Shock pad, base, edge details, and infill. |
| Loose-fill rubber | Varies | Loose fill is generally harder to use with mobility devices; plan unitary routes. | Raking and redistribution; less frequent replenishment than wood fiber. | Needs drainage and containment. | Some color options. | Can retain heat. | Borders, drainage, and wear mats. |
| Hybrid approach | Moderate | Places firm surfacing where routes and accessible components are planned. | Combines the upkeep of both systems; transitions need attention. | Each portion needs an appropriate base. | Moderate. | Mixed. | Transition details and separate bases. |
Tendencies, not guarantees. Performance depends on the certified system, depth, installation, and maintenance.
How much area needs surfacing
Protective surfacing has to cover each component’s use zone, the area around and under equipment where a child might fall or move. Use zones extend well beyond the equipment footprint, especially for swings and slides, so the surfaced area is often several times the area of the structures themselves. The manufacturer’s layout for your specific products defines it.
Critical fall height and impact attenuation
Each surfacing system is tested to a critical fall height: the height from which it attenuates a fall within set limits. The surface under each piece of equipment must be rated for at least that equipment’s fall height. Taller equipment may need deeper loose fill or thicker unitary surfacing. Impact attenuation is tested under ASTM F1292; verify the current edition and ask for test documentation for the exact system and thickness or depth proposed.
Sub-base, drainage, wear mats, and containment
Loose fill needs a drainage layer, geotextile, borders to contain it, and wear mats under swings and slide exits where it gets displaced. Unitary surfaces need a compacted aggregate or concrete base. These items are frequently excluded from surfacing quotes, so ask.
Accessibility of surfaces
Accessible routes within the play area must use surfaces that are firm, stable, and tested for accessibility (ASTM F1951 is the referenced test). Some engineered wood fiber products are tested for accessibility, but firmness depends on depth, compaction, and upkeep, which is why many projects use unitary surfacing along routes. No surfacing category is automatically accessible or compliant.
Maintenance, replenishment, and lifecycle cost
Lower first cost can mean higher upkeep. Loose fill compacts and migrates and needs periodic top-up to stay at its tested depth. Unitary surfaces need occasional repairs and eventual resurfacing. Compare systems over the life of the playground, not just at installation. The planner shows an annual maintenance allowance separately from the project range.
Heat
Dark rubber and synthetic surfaces can become very hot in direct sun. Shade, lighter colors, and timing of use help. In hot regions, consider surfacing and shade together.
Sources
- Playworld’s guide to the cost of building an inclusive playground
- Playworld’s overview of playground surfacing options
- GameTime’s guide to choosing playground surfacing
- U.S. Access Board study of accessible play surfaces
- ASTM F1292 standard for impact attenuation of playground surfacing
- ASTM F1951 standard for accessibility of playground surfacing
See all sources, with links and review dates.
Disclosure. Design My Playground is an independent planning resource, not a manufacturer, contractor, engineer, inspector, or certification body. Planning estimates are not bids, quotes, construction documents, or compliance determinations; qualified professionals and the selected manufacturer must confirm final products, layout, safety, accessibility, and pricing.
